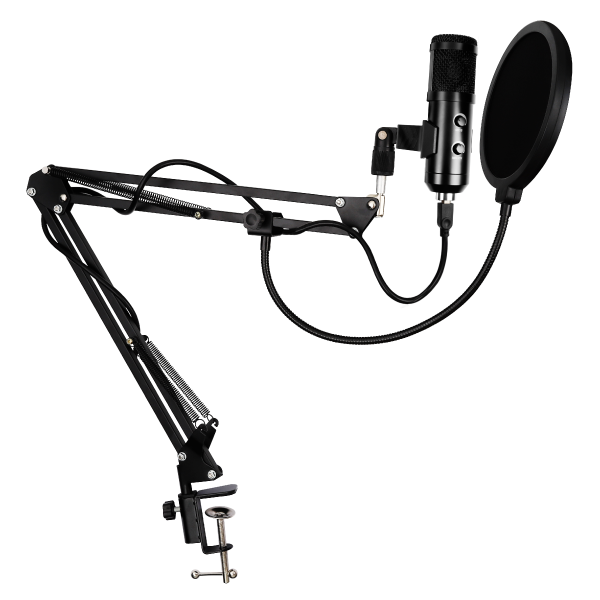

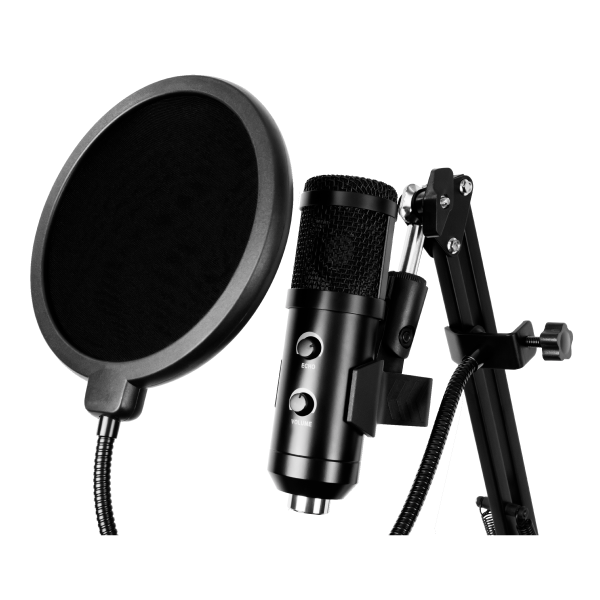

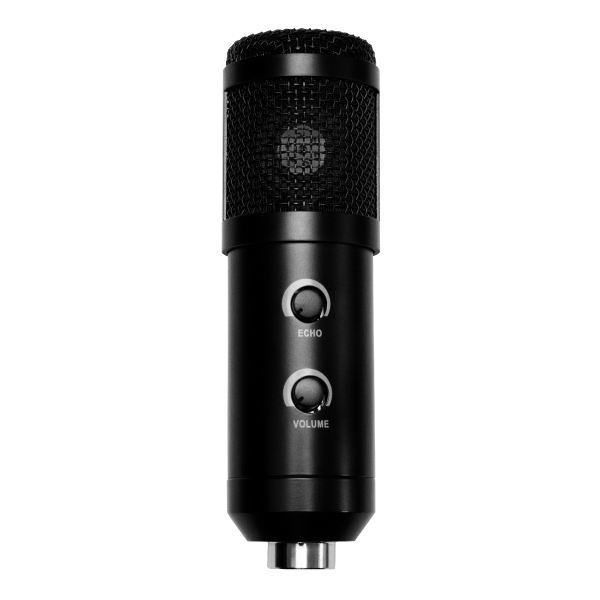

MP-704

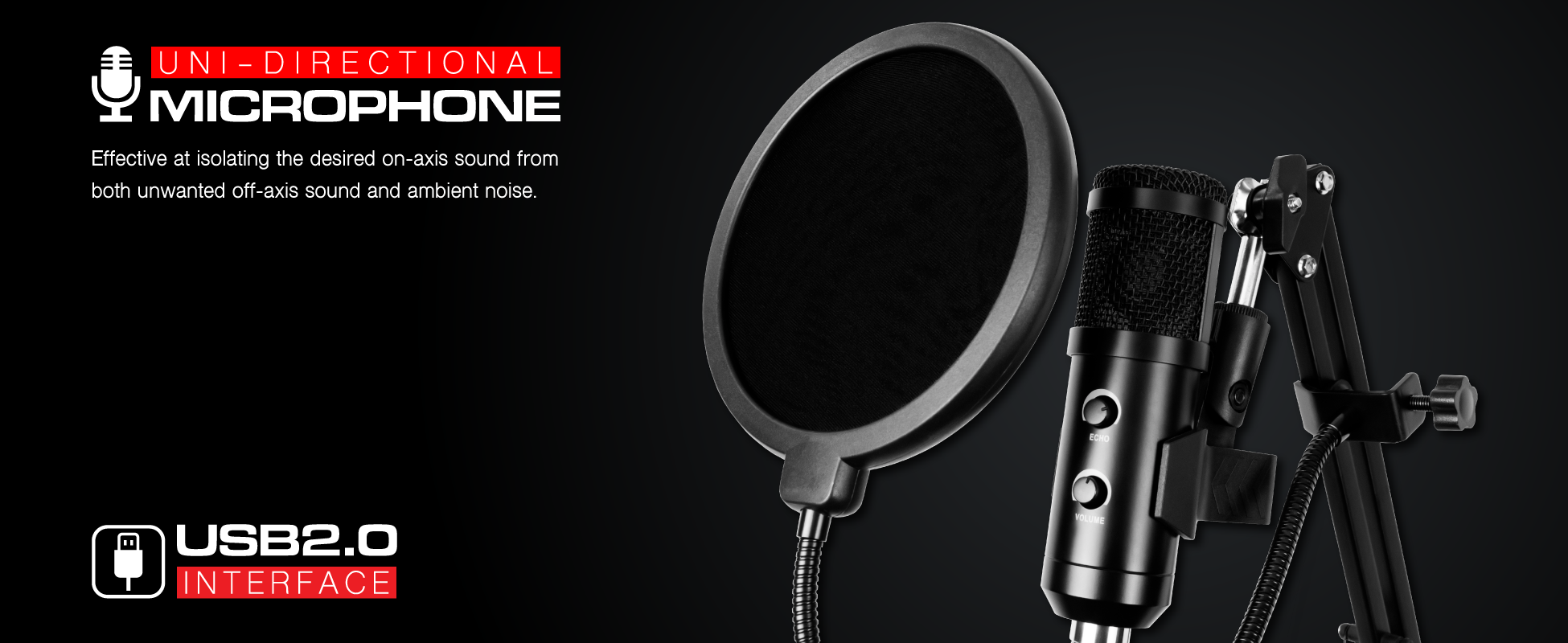

- POLAR PATTERN : UNI-DIRECTIONAL
- FREQUENCY RESPONSE : 30Hz-20kHz
- MAX SOUND LEVEL : 120dB
- S/N RATIO : 70dB
- SENSITIVITY : 32dB+-5dB
- SPEAKER AMPLIFIER : 1dB+-25dB
- CABLE LENGTH 2.2M
- USB PLUG CABLE
- POWER SUPPLY : USB DC5V
| Model Name | MP-704 | |
|---|---|---|
| Speaker Amplifier | 1dB+-25dB | |
|---|---|---|
| Polar Pattern | Uni-Directional | |
|---|---|---|
| Electrical Current | 3mA | |
|---|---|---|
| Frequency Response | 30Hz-20 kHz | |
|---|---|---|
| Interface | USB 2.0 | |
|---|---|---|
| Sensitivity | 32dB±5dB | |
|---|---|---|
| Cord Material | Rubber Cord | |
|---|---|---|
| Output Impedance | 150Ω±30% | |
|---|---|---|
| Cord Length | 2.2 m. | |
|---|---|---|
| Loading Impedance | >=1000Ω | |
|---|---|---|
| Dimension (WxHxD) | 45x155x45 mm. | |
|---|---|---|
| Equivalent Noise Level | 16 dBA | |
|---|---|---|
| Product Weight | 215 g. | |
|---|---|---|
| Max Sound Level | 120 dB | |
|---|---|---|
| Software Enable | No | |
|---|---|---|
| S/N Ratio | 70 dB | |
|---|---|---|
| Support | All Windows Versions & Mac | |
|---|---|---|
MP-704
SOFTWARE
A specially designed software is included :
Support all Windows Version
